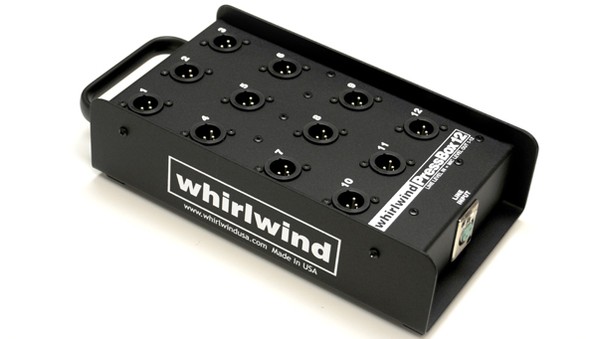

Whirlwind 12-Channel XLR PressBox

Overview

The Whirlwind PressBox distributes one line level input to up-to 12 mic level outputs such as broadcast media feeds.‌ Whirlwind supplies their original TRSP-2 Transformers to provide reliable interchannel isolation and ground-lifting to each output, eliminating noise issues.

*Only available at HSC Campus

Feature Highlights

Primary Features:

1 to 12 line in/microphone out passive pressbox expander for broadcast and business conference applications
Rugged, all-steel housing with convenient carrying handle
Transformer isolation and grounding for each output eliminate interchannel and RF noise

Frequently Asked Questions

This equipment has the following limits for circulation and usage:

Description	Circulation Limits
Minimum Length of Reservation/Checkout	30 Minutes (Standard)
Maximum Length of Reservation/Checkout	7 Days (Standard)

General
Input Impedance	2 kOhms
Output Impedance	150 Ohms
Operating Level	0 dB Input = -43 dB Output
Isolation	65 dB (Channel to Channel)
Dimensions	11.75 x 5.75 x 2.75" (298.4 x 146 x 69.8mm)
Weight	7 lb (3.2 kg)
